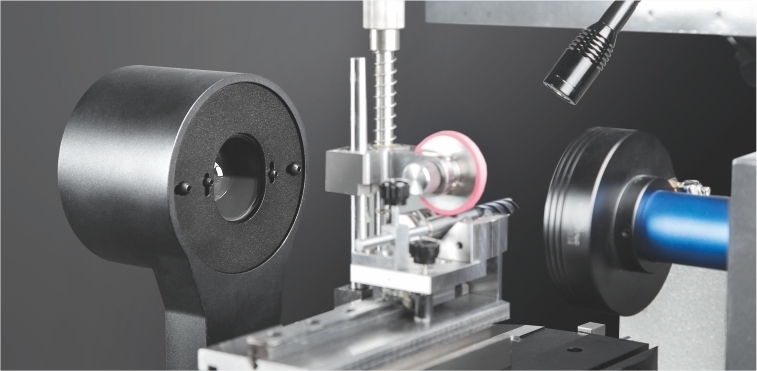

Tool Inspection System with 80*60*60mm Measurement Range 50mm Maximum Tool Diameter and 300mm Maximum Tool Length

The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Its compact design and great stability make it suitable for use in metrology rooms, receiving inspection, or directly in production. Configured with SMARTOOL universal measuring software, the RANGER600 is ideal for all types of metal cutting tools, from fast checking of single criteria to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process.

The rotary table offers two mechanical fixed angles (0° and 90°) for precise tool location during measurement. The 0° position enables measurement of Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is suitable for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle. Additional angles can be achieved using the accurate encoder embedded in the rotary table.

Developed based on high-accuracy optical and digital measuring technology, SMARTOOL is intuitive to operate and offers numerous measuring and evaluation algorithms specifically for tools manufactured or sharpened in grinding business.

High resolution image display and graphical operation interface with all function keys and control panel displayed on the software window.

Real-time edge detecting curve view makes edge analysis and measurement more intuitive. Users can switch to curve view mode at any time during measurement.

The freely rotatable reticle in the image area displays angles, enabling fast angle measurement through edge comparison.

Users can input CAD drawings as reference and compare the real image to evaluate cutting tool geometries.

A dimmable additional light on a flexible arm provides local image enhancement.

A multiple section tools holder is embedded at the side of the machine for organized tool storage.

The parallel light path contour LED light module is movable along the X axis, providing sharp edge views when measuring tool contours.

Solid standing work station with practical storage space for materials and tools.
