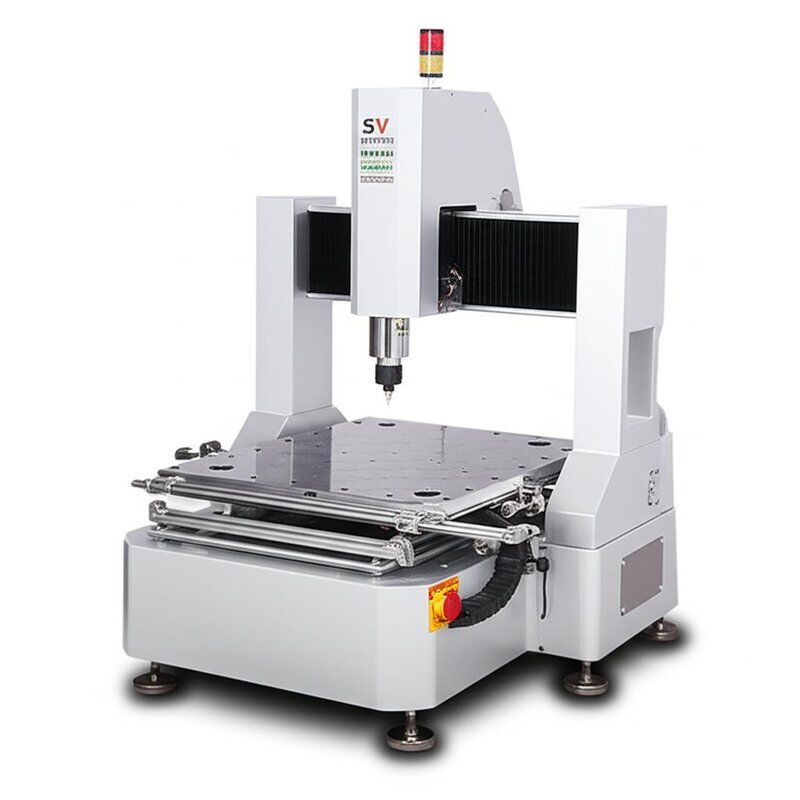

SV Series Marble Worktable Vision Measuring Machine – MARB Multi-Axis Base for High-Precision & Long-Lasting Mass Production QC

Informacion basica

Lugar de origen:	Cantón, China
Nombre de la marca:	UNIMETRO
Certificación:	CE,ISO
Número de modelo:	Serie SV

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Cuadro de madera + paquete de vacío
Tiempo de entrega:	15 ~ 20 días
Condiciones de pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente:	5 juegos por mes

Mejor precio Contactar ahora

Información detallada

Modelo:	Serie SV	Nombre del producto:	Máquina de medición por visión totalmente automática - SV3
Repetibilidad:	2 um	Exactitud:	2+L/200um
Resolución de escala lineal:	0.5um (0.1um opcional)	Modo de medición:	Completamente automático
Apoyo:	OEM, ODM, personalizar	Escenario de aplicación:	Laboratorio/Industria
Garantía:	12 meses	Peso (kg):	400
Midiendo la rabia:	300/300/200
Resaltar:	SV Series marble worktable vision measuring machine , MARB multi-axis base measuring machine , high-precision vision measurement machine with warranty

Descripción de producto

SV Series Marble Worktable Vision Measuring Machine – MARB Multi-Axis Base for High-Precision & Long-Lasting Mass Production QC

Product Overview

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring a high configuration with superior resolution and faster processing speed. This robust system achieves three-axis fully automatic programmable detection by matching the workpiece coordinate system through programmed execution. Designed for repeated measurements of heavy workpieces, it incorporates memory, learning, and auto-programming functions for rapid, accurate real-time measurement on-site. The marble construction ensures high stability, strong durability, and low maintenance costs, perfectly balancing high precision, high efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.

Technical Specifications

Model	SV-3	SV-4	SV-5	SV-6
Dimension (mm) (X/Y/Z)	650/950/1740	730/1040/1740	790/1130/1760	890/1370/1780
Measuring range (mm) (X/Y/Z)	300×200×200	400×300×200	500×400×300	600×500×200
Accuracy (μm)	2 +L/200	2 +L/200	2 +L/200	2.5 + L/100
Repeatability (μm)	2	2	2.5	2.5
Weight (kg)	400	500	600	700

Additional Specifications: Resolution: 0.5μm (0.1μm optional) | Industrial-grade color CCD camera | Lens: 1x-10x variable magnification | Magnification: 20X - 200X (varies by camera model) | Work Distance: 85 mm | Illumination: Programmable surface light, LED bottom parallel light (coaxial light optional) | Drive system: CNC control, linear motor drive; Joystick, mouse keyboard control | Linear scale resolution: 0.1μm

Applications

Plastic parts

Metal parts

Stamping mold

Rubber part

Electronic part

PCBA part

Gear part

Key Features

High Rigid Structure Design

Whole closed frame moving bridge structure with fixed measuring workpiece, providing large bearing capacity and excellent motion performance
Finite element analysis technology integrated into mechanical design for high rigidity and precision
Grade 000 granite base with high strength, corrosion resistance, and excellent stability
Aluminum oxide surface treatment worktable for fast, flexible action control, durability, and aesthetics

High Precision Configuration

RENISHAW open grating ruler with 0.5μm resolution for high precision and stability
Precision linear guide rail, ball screw of grinder, and AC servo motor ensure positioning accuracy
2M pixel high-definition color Giga digital camera for clear observation and stable measurement
6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration
Programmable 5-ring 8-zone LED surface light source with transmission parallel LED contour light source system and intelligent 256 level brightness adjustment
Full axis CNC control with AC full closed loop servo motor drive

Optional Multi-Sensor for 3D Measurement

The HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and RENSHAW full series probe brackets, enabling automatic transformation of full-scale measurement on a single device to maximize productivity.
